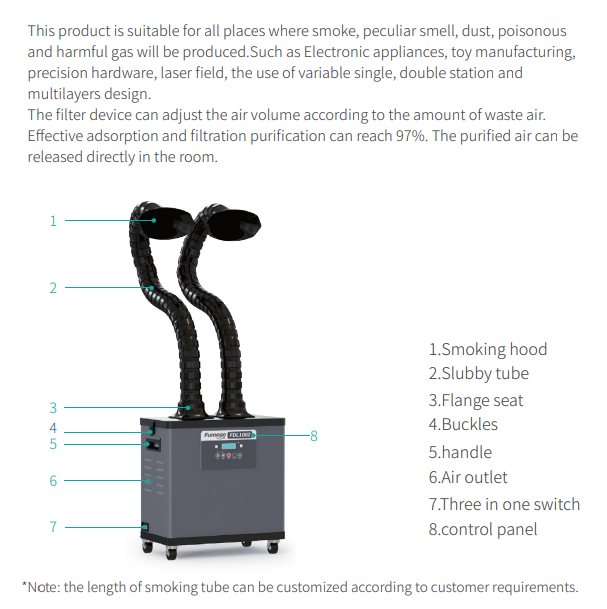

Laser Marking Engraving Soldering Fume Extractor With 2 Suction Bamboo Pipes
Instruction:
1, Our machine can maximize to use the filters;
We are using different layers filters to collect different size level of pollution.
2, Using noise reduction structure design, to keep working environment quiet;
3, The fume tube can be randomly rotate, and can be fix in any position;
We using bamboo shape tube and 360°rotation support tube, to make the machine position very flexible during work.
4, Assembled with DC brushless motor, which will have more stable performance and longer life;
5, Microcomputer chip control, digital display, and remote control;
Our machine have a very good outlooking, we have digital display, and can be controlled by touch screen and can be remote in a distance.
6, It will alarm when the filters is out of service;
People can be easily know when to replace filters and any problem happened if the machine is out of work.
7, The fans material is special alloy, which can avoid corrosion;
The fans runs very stable and reliable, very big air flow;
8, Saving energy and cost, lower noise and larger suction power;
9, There is a watch window, from which we can easily notice the filter situation and whether it should be replaced or not;
10, It is also a dust collector, bad smell remover, and fire proof;
We have a fire proof frame screen, bellows pocket to collect dust, and PP HEPA filter and active carbon filters to remove bad gas.
11,The machine have back blowing system, which can easily clean dust on the filters;
Cylinder filters assemble with pulse back blowing system, easy to clean filters and make the filters reusable.
12, Imported integrated AC fan, stable performance and longer life;
13, Portable because it assemble with 4 wheels;
14, High negative pressure;
Specifications:
| Model | Laser Marking Fume extractor |
| Power | 200 W |
| Air flow | 150 m³/h * 2 |
| Dimension | 420*245*400 mm |
| Voltage | 110/220 V |
| Noise | 55 db |
| Weight | 13kg |
| Filters | 3 layers |
| Size and Frequency to replace | |
| Pre-filter | 365*180*25 mm 7-60 days |
| Middle filter | 360*170*55 mm 3-6 months |
| HEPA filter | 385*195*250mm 3-6 months |
| Usage | Manual soldering, small Laser machine and Soldering robot |
Features:
1, With the intelligent control pannel and digital display, operation becomes easy and simple;
2, With the remote control, you can control the machine from a distance;
3, Truly sensitive and effective Filter Clogging Alarm system reminds you to replace the filter in time;
4, Wheels make the movement easy and flexible.
FAQ:
Q: Do you have any Certificate for you machine?
A: Yes, we have CE FCC ROHS certificated.
Q:Are you a factory or trade company?
A: We are manufacture located in Guangdong of China, Which has been focus on air purifier more than 16 years.
Q : Do you have any other machine?
A: Yes, we have different model for different room size, from 20 M2 to 150 M2, we are professional.
Q: What is advantage for your design?
A: Our machine can do 7 stages, Prefilter, HEPA filter, Active carbon filter, UV lamps, Photocatalyst, Plasma, and Anion.
Q: How can I control the air purifier?
A: It can be controlled by Remote, wifi app and touch screen.
Q: How long should we clean the tube?
A: It depends on the real situation of the tube, need to inspection every week.
Q: How long is needed for manufacture?
A: It always be about 3-7days, big quantity need to discuss.
Q: Why choose Fumego?
A: Lower using cost and longer machine life. We have 8 years after-sales warranty.
Q: What should we do if the suction power cant clean all smoke?
A: Check the distance of the air input and smoke produced place, air flow near, length and diameter of the tube.
Q: Do you do OEM?
A: Yes
Product picture:
